Managing E-Mail Templates

Managing E-Mail Templates

Overview

Mobile Forms Administrators have the ability to edit E-Mail Templates for e-mails sent from the Field2Base system. You can also create custom Sent Form E-Mail Templates that are sent when specific Forms are submitted or Workflow E-Mail Templates that are sent as part of Custom Workflows.
Navigate to Admin > E-Mail Templates to create or edit the e-mails for your company.


Editing a Default E-Mail Templates

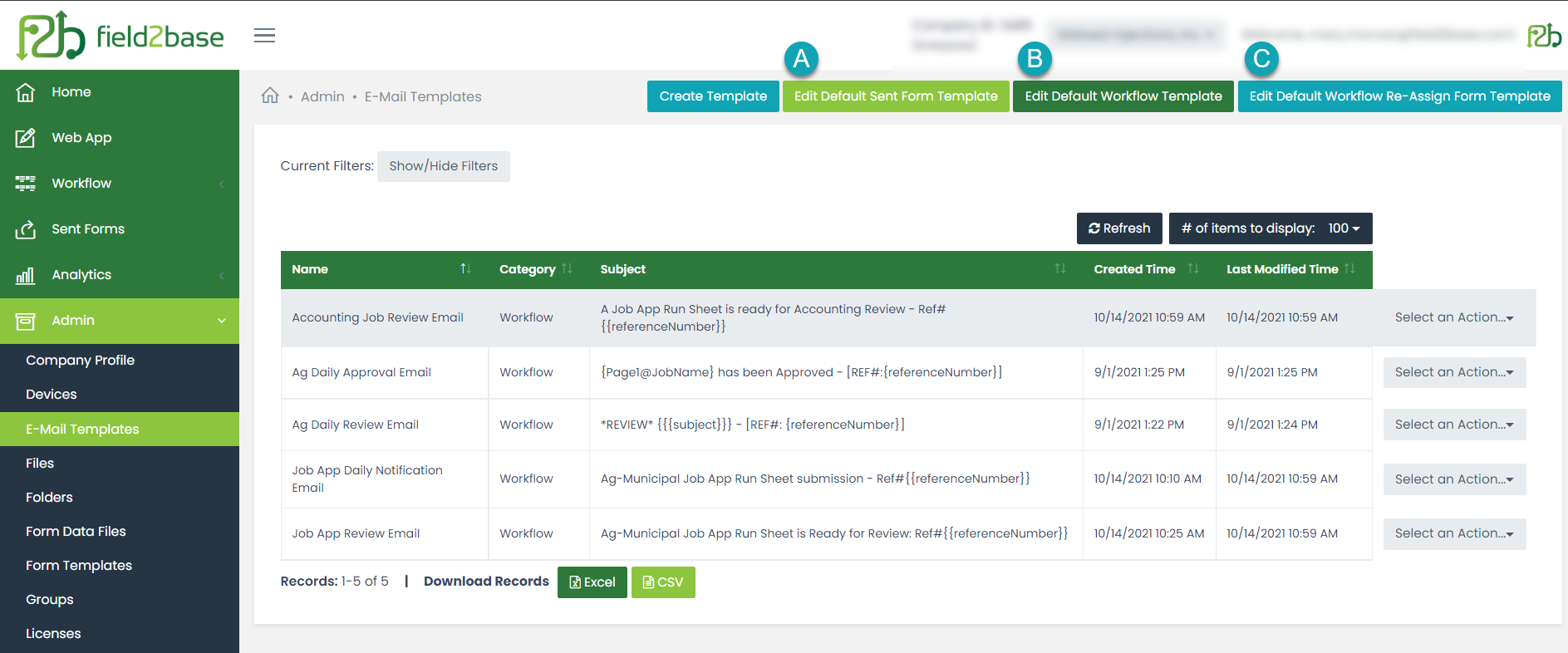

The Edit Default Templates button provides a shortcut to edit the most commonly edited default E-Mail Templates.

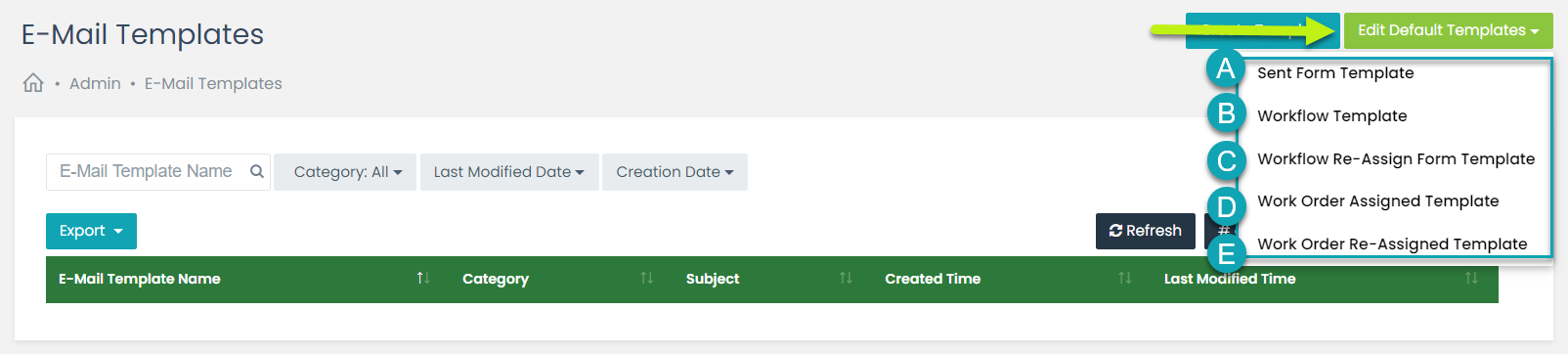

1. Click the Edit Default Templates button.

2. Select the default template you wish to edit.  See the category specific sections below for more details on each category.

A. Sent Form Template - Default e-mail that is sent each time a Form is submitted unless the Form has a Form-specific template.
B. Workflow Template - E-mail that is sent to the Final Recipients each time a Form is approved in a Basic Workflow.
C. Workflow Re-Assign Form Template - E-mail that is sent to the newly assigned User(s) when a Form is reassigned during a Workflow.
D. Work Order Assigned Template - E-mail that is sent to notify a User when a Work Order has been assigned to them unless the Work Order Dispatcher chooses not to include a notification e-mail when they create the Work Order.
E. Work Order Re-Assigned Template - E-mail that is sent to the newly assigned User when a Work Order is reassigned unless the Work Order Dispatcher chooses not to include a notification e-mail when they re-assign the Work Order.
3. This will open the E-Mail Template window. See the section below, "Customizing the E-Mail Template", for next steps.


Creating a Custom E-mail Template

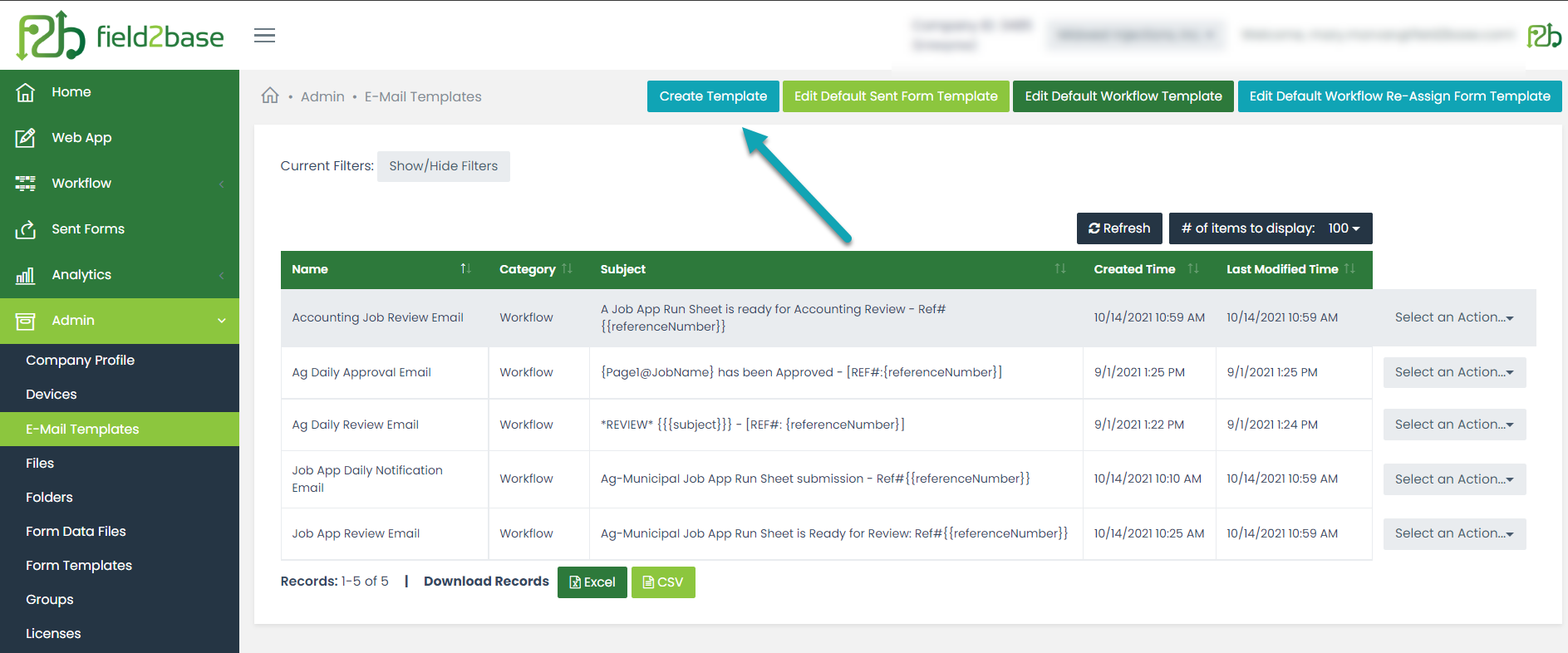

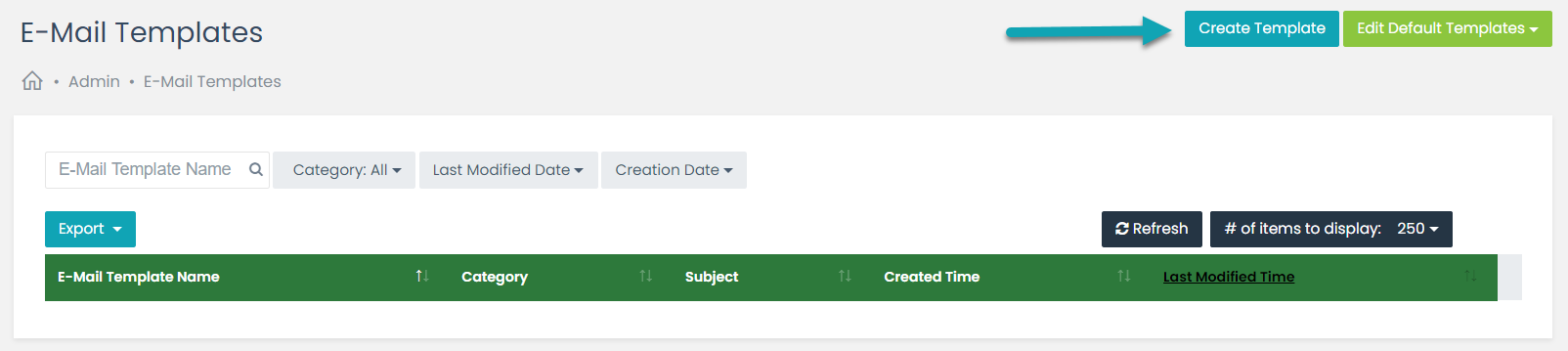

1. Click the Create Template button.

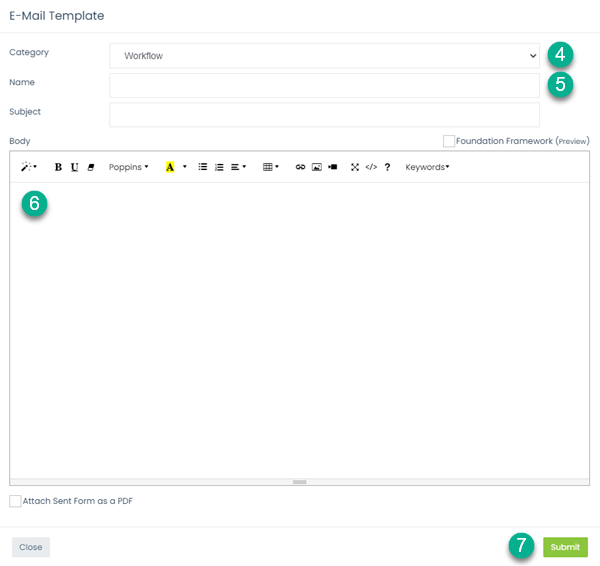

2. This will open the E-Mail Template window. Choose your desired category.

  1. Import - Emails sent after a bulk import has been completed.
  2. Sent Form - Emails sent when a Form is submitted. You can edit the company-wide default Sent Form E-Mail or the template for a specific Form.
  3. User - Emails related to User activity such as new accounts or password changes.
  4. Work Order - Emails sent when a Work Order is assigned or to use when sending the link for a Shared Form Work Order.
  5. Workflow - E-mail templates that can be used as part of Custom Workflows.

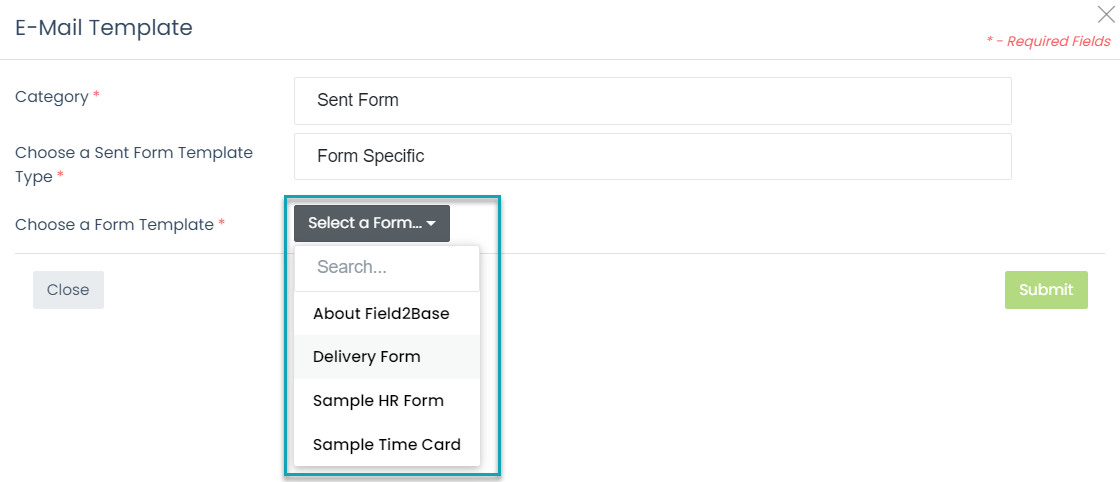

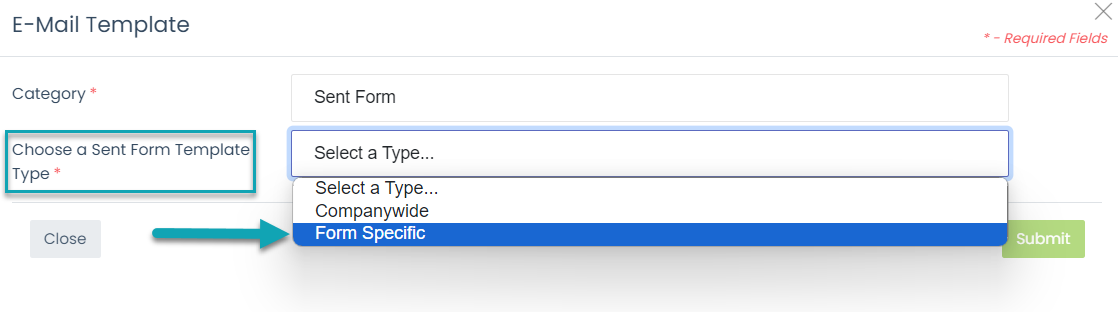

3. (optional - for Sent Form only) Select Form Specific as the type.


4. (optional - for Sent Form only)  Select the Form you wish to customize the Sent Form E-Mail for.


5. This will populate the rest of the E-Mail Template window. See the section below, "Customizing the E-Mail Template", for next steps.


Available Actions for Existing E-mail Templates

Copying an Existing Template

If you are creating multiple E-Mail Templates with similar layouts, you can copy the body and pdf settings from an existing template.

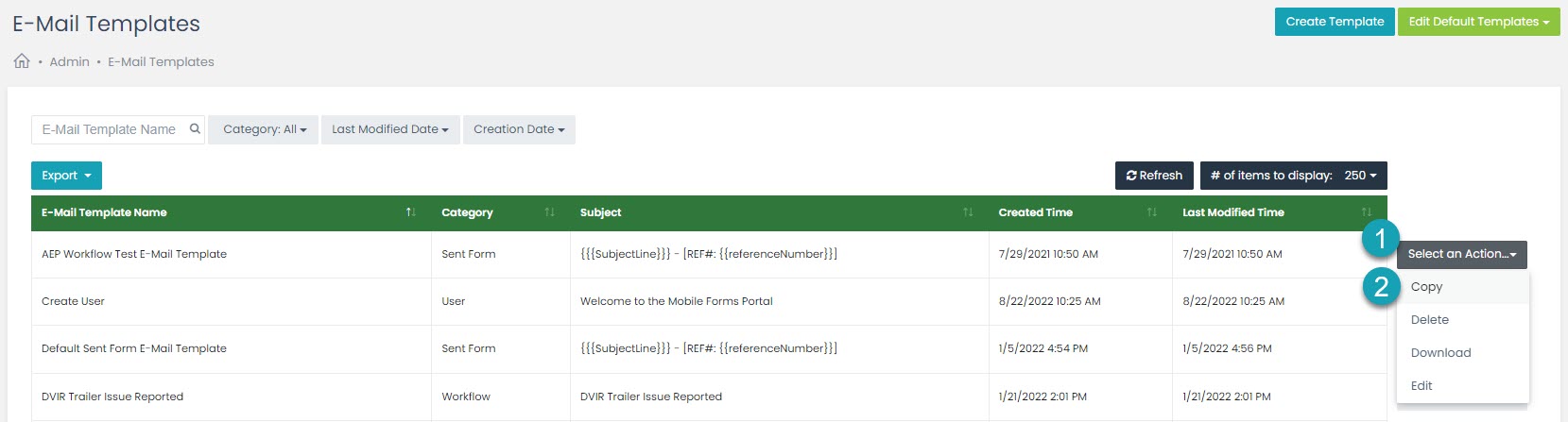

1. Click the Select an Action button next to the template you wish to copy.


2. Select Copy

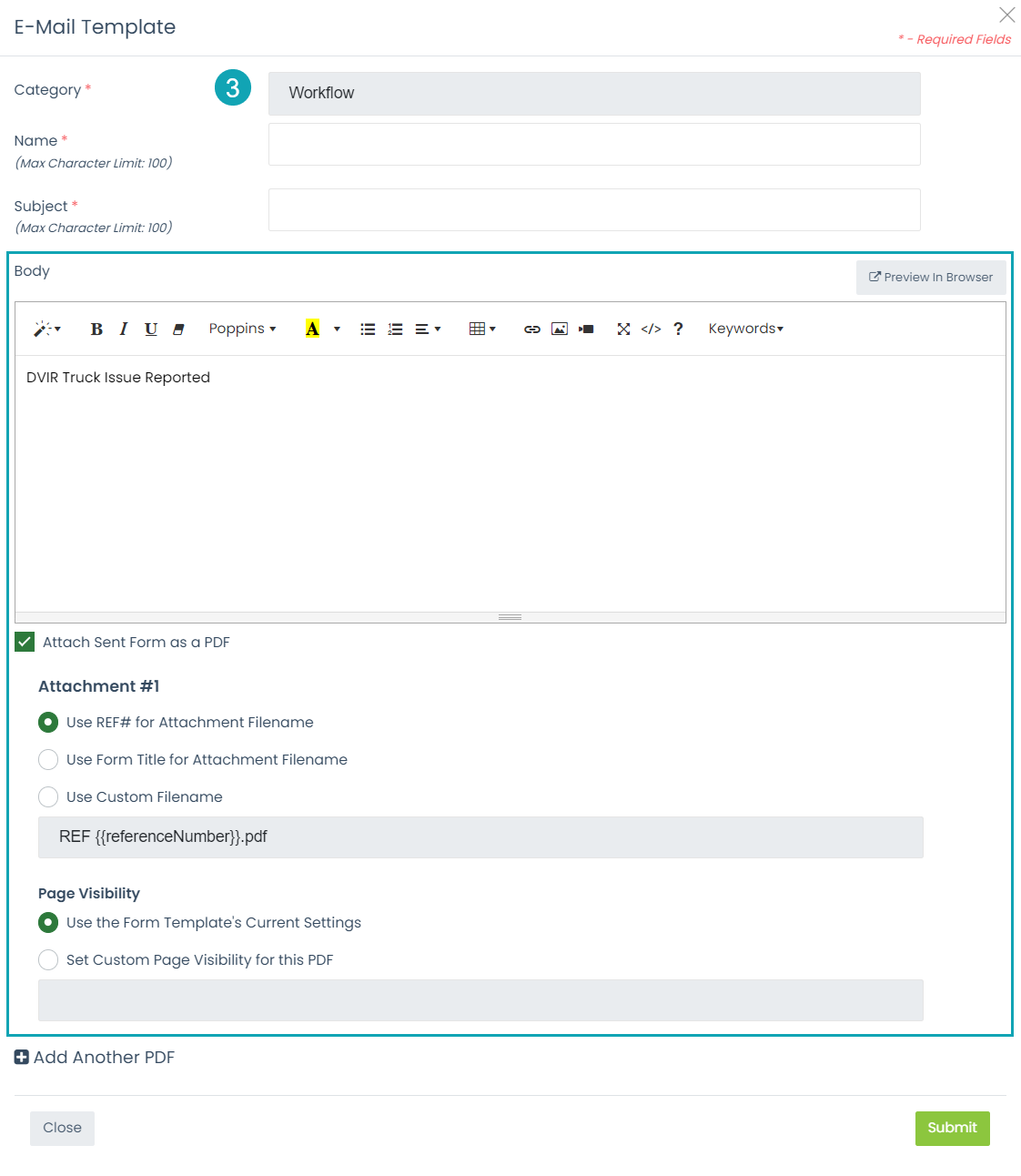

3. This will open the E-Mail Template window. Select the same Category as the template you are copying from.


4. Edit the body and PDF settings that were copied over as needed. See the section below, "Customizing the E-Mail Template", for next steps.

Deleting an Existing Template

You can delete any a custom E-Mail Templates that you are no longer using.
Warning: Deleting an E-Mail Template that is part of an active Custom Workflow can cause workflow errors.

1. Click the Select an Action button next to the template you wish to delete.

2. Select Delete

Downloading the HTML File for an Existing Template

You can download the HTML file for the body of an existing template if you wish to make edits in your own editor. You can then copy and paste the HTML back into the E-Mail Template. See the section below, "Customizing the E-Mail Template", for details on how to access the HTML window (Step 3 D).

1. Click the Select an Action button next to the template you wish to delete.

2. Select Download

Editing an Existing Template

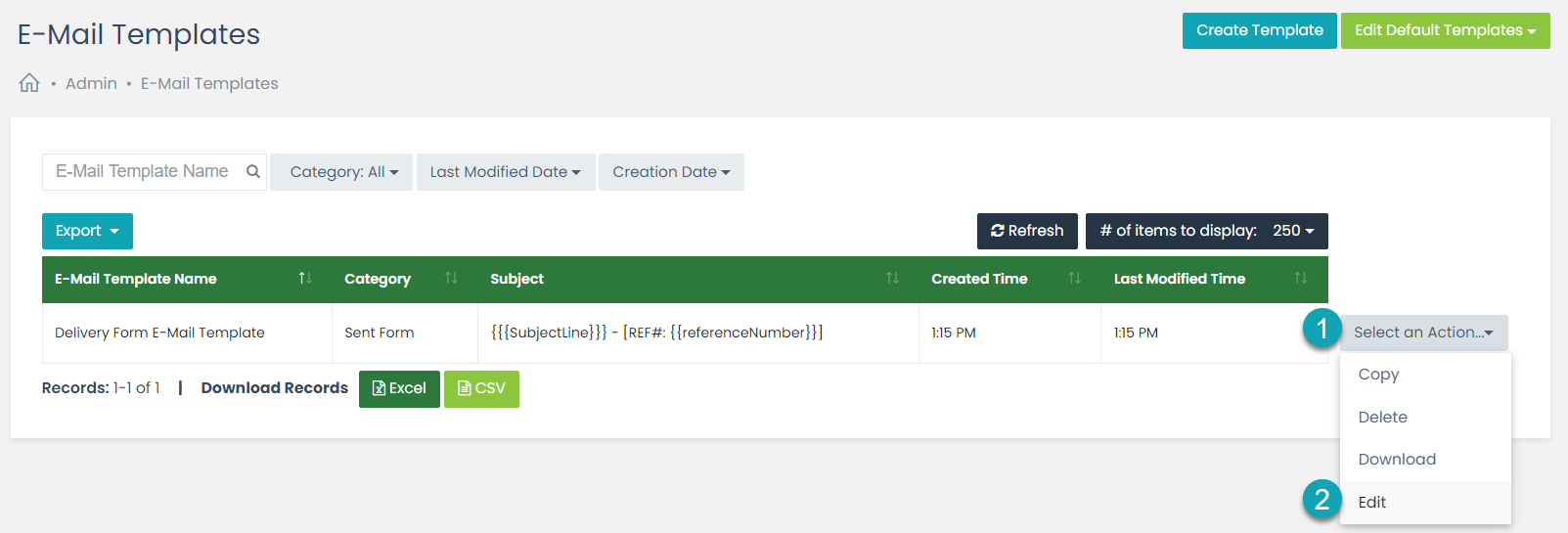

1. Click the Select an Action button next to the template you wish to edit.


2. Select Edit.

3. This will open the E-Mail Template window. See the section below, "Customizing the E-Mail Template", for next steps.


Customizing the E-Mail Template

1. Select the name for an existing system template or enter the name for new template.


2. Enter the subject line of the e-mail. You may use region values from the Form and any of the available keywords. Commonly used keywords include:
  1. {{ReferenceNumber}} - Unique REF# used in the system for the Sent Form
  2. {{{Subject}}} - Subject (or friendly name) of the Sent Form
  3. Use the format, {Page1@RegionName}, to insert region values

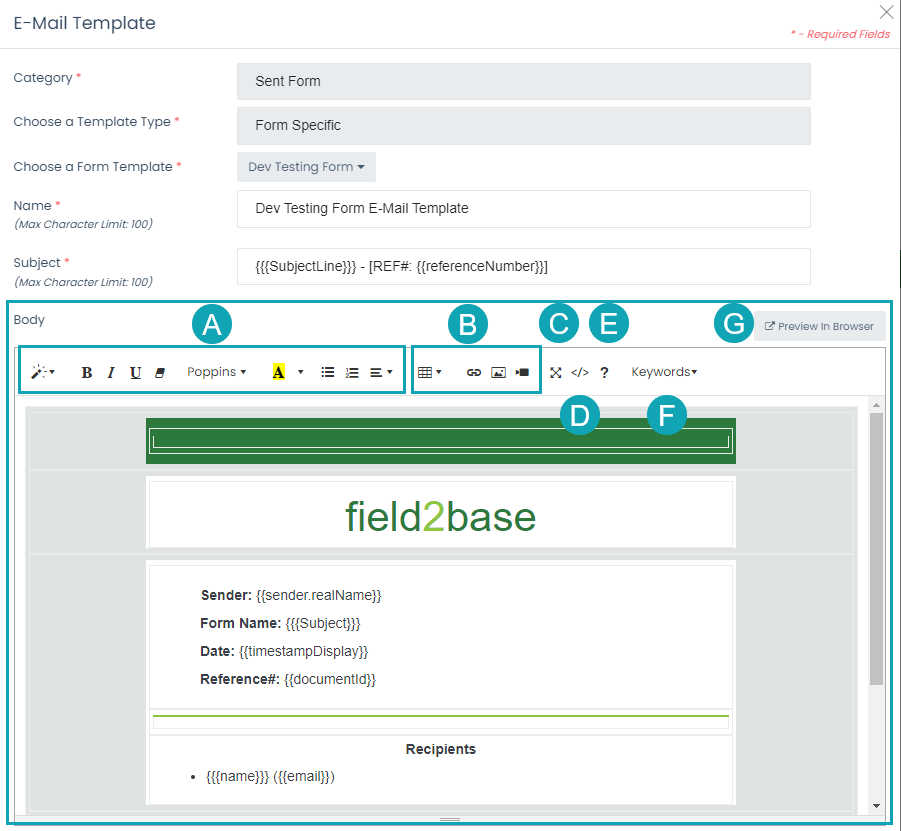

3. Create or edit the body of the e-mail. You can insert region values from the Form using the {Page1@RegionName} format. You can also include any of the available keywords (F) for the category of e-mail. See the category specific sections below for more details.

A. You can style your font, alignment and insert lists for the text.
B.  You can insert tables, links, images and video.
C. Click here to maximize the Body section to a full window.
D. Toggle between normal edit window (default) and HTML code. You use the HTML view to copy and paste HTML code if you wish to create and edit the HTML using another text editor.
E. Click here to view a list of available keyboard shortcuts.
F. Click here to view a list of available keywords. You can click on a keyword to insert it into the e-mail body.
G. Click the Preview in Browser button to preview your e-mail in the browser.

4. You can choose whether to include the Sent Form as a PDF attachment as part of Sent Form or Workflow E-Mail Templates. Please refer to the section below, "How to Customize PDF Attachments", for details on PDF attachment options.

5. Click the Submit button.


How to Customize PDF Attachments

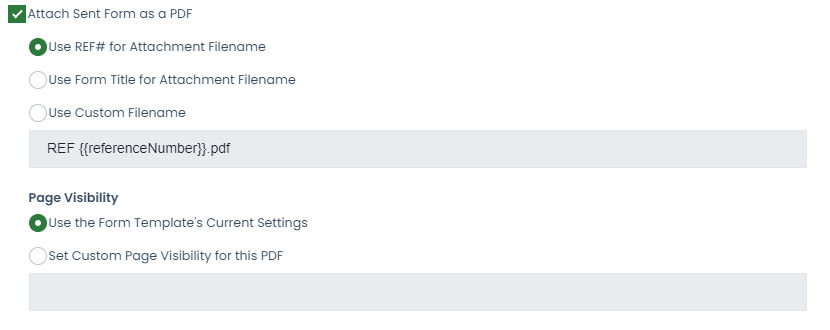

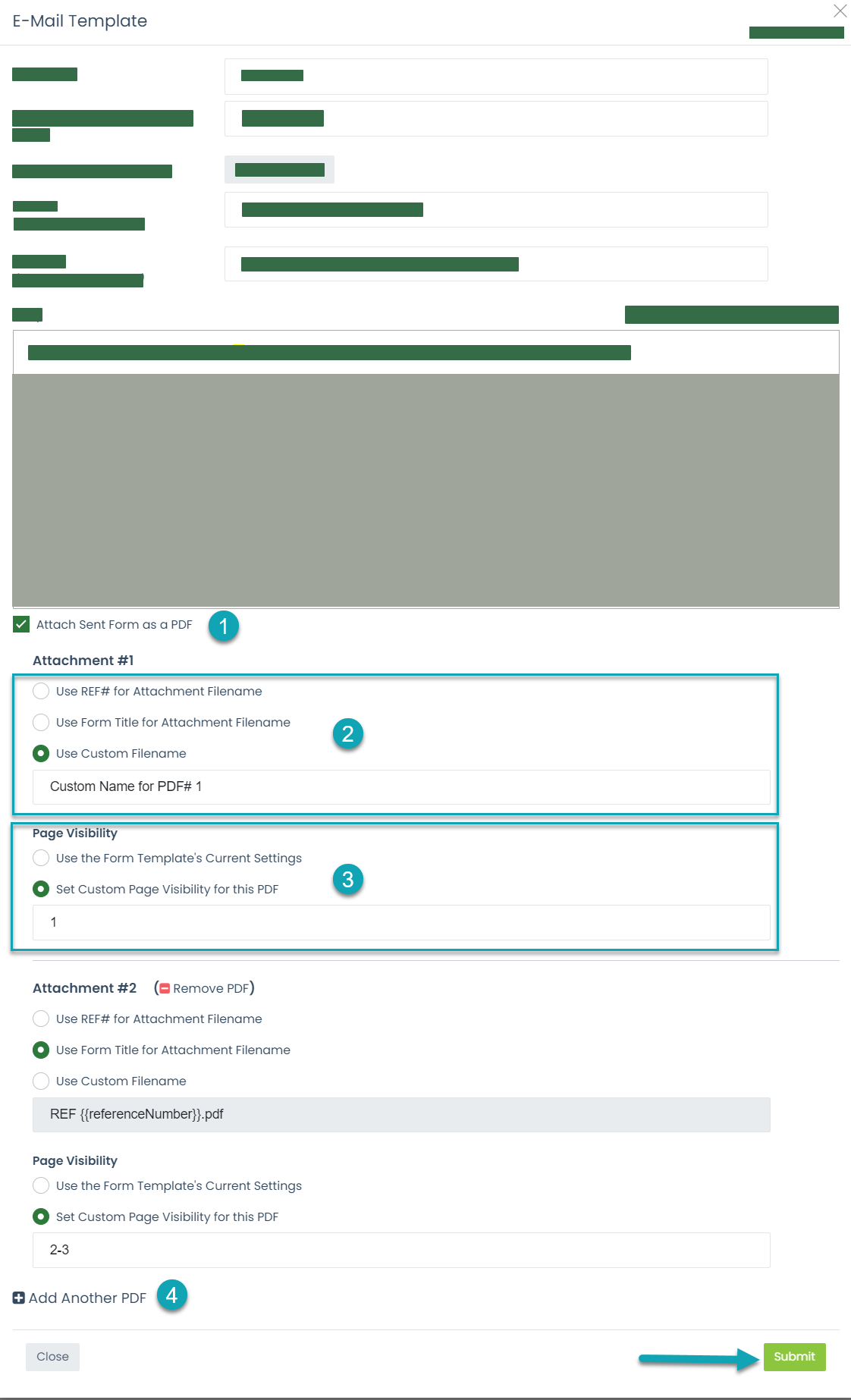

1. The Attach Sent Form as a PDF checkbox is checked by defaultYou can uncheck the box if you do not wish to include any PDF attachments in the e-mail. This will hide the rest of the PDF options since they are no longer applicable.


2. Select the name for your PDF attachment. There are 3 options for the PDF file names:
  1. Use REF# for Attachment Filename - This is the default option. The name for the PDF file will be the Reference Number for the Sent Form. For example, "REF 12345678.pdf".
  2. Use Form Title for Attachment Filename - The name for the PDF file will be the Form Title. For example, "Work Ticket - Project# 123 Foreman: John Doe.pdf".
  3. Use Custom Filename -  You can set any filename using hard-coded values, region values ({Page1@RegionName}) and keywords.  Please see the article on Managing E-mail Templates for details on available keywords.
Warning: You must include .pdf as part of the custom filename.
3. Set the page visibility for the pages you wish to include as part of the PDF attachment. There are 2 options for customizing the pages in the PDF attachment:
  1. Use the Form Template's Current Settings - This is the default option. The pages that are visible when the Form is sent will also be visible in the PDF attachment.
  2. Set Custom Page Visibility for this PDF - If you select this option, you can enter the page numbers (separated by commas) or page ranges you want included in the PDF attachment. For example, "1,3,6-8" would include pages 1, 3, 6, 7 and 8 in the PDF.
4. Click on the + button if you wish to add another PDF attachment. For example, if you want to include several PDF attachments, one with the personnel pages and another with equipment pages.
Note: You can add up to 10 PDF attachments.


Import Templates

Import E-Mail Templates are automatically sent when a bulk import process has finished. The e-mail is sent to the User that initiated the bulk import process.

Types

  1. Bulk User Delete
  2. Bulk User Update
  3. Import Devices
  4. Import Groups
  5. Import Locations
  6. Import Recipients
  7. Import Users
  8. Import Work Orders

Available Keywords

  1. {{AutoGeneratePassword}} - (boolean) Setting selected during the Import process to determine if the Password is auto-generated or not
  2. {{BaseWebUrl}} - https://admin.field2base.com/
  3. {{ContactsCount}} - Number of possible Contacts included in the Import processed
  4. {{ContactType}} - Setting selected during the Import process to determine the Type of Contact (Recipient or User)
  5. {{DateTime}} - Time the Import was processed
  6. {{{DetailDevices}}} - List of device details related to the devices included in the Import processed
  7. {{{Errors}}} - List of any errors that occurred during the Import process
  8. {{ForcePasswordReset}} - (boolean) Setting selected during the Import process to determine if the User is forced to change their Password when they log in for the first time
  9. {{GroupCount}} - Number of Groups included in the Import processed
  10. {{Issues}} - Identifies if there are issues with the Import processed
  11. {{IsVisibleRecipient}} - (boolean) Setting selected during the Import process to determine if the Contact will be shown in the Optional Recipient List
  12. {{LocationsCount}} - Number of Locations included in the Import processed
  13. {{PasswordNeverExpires}} - (boolean) Setting selected during the Import process to determine if the User's Password in this Import will never expire
  14. {{PortalLoginUrl}} - https://admin.field2base.com/
  15. {{{PrefersPDFAttachments}}
  16. {{ProjectAssociations}} - List of Associated Folders selected during the Import process for the Contacts imported
  17. {{SuccessCount}} - The number of successful updates during a bulk import, assignment, or update process
  18. {{WorkOrderCount}} - Number of Work Orders included in the Import processed

Sent Form Templates

Sent Form e-mails are sent whenever a Form is submitted. These e-mails are sent automatically to Mandatory Recipients of a Form, Folder level BCC Recipients, and to any e-mail address the User selects when sending from the Mobile Forms App.
You have the ability to customize the default Sent Form E-Mail which will apply to all of your Forms. You can also customize the E-Mail template for a specific Form only. This will override the default template for that Form.

Using Conditionals Based on Region Values

You have the ability to display certain portions of your email template based on whether a Form Region has a value by using If conditionals in the HTML for your email template.
  1. {{#if form.page1.Comments}}
  2.    <p>Comments: {Page1@Comments}</p>
  3. {{/if}}

Available Keywords

  1. {{AnonymousLink}} - URL link to a PDF version of the Sent Form
  2. {{Attachments}} - Used in creating the Attachment Block of the Sent Form Template with the If statement to trigger their display
  3. {{BaseWebUrl}} - https://admin.field2base.com/
  4. {{company.id}} - Company ID of the Form sender
  5. {{company.name}} - Company Name of the Form sender
  6. {{CompanyId}} - Company ID of the Form sender
  7. {{DocumentId}} - Unique REF# used in the system for the Sent Form
  8. {{{form.friendlyDataName}}} - The Form Title for the Sent Form
  9. {{{form.name}}} - Name of the Sent Form triggering the email
  10. {{FormProcessTime}} - A timestamp of the current server local time at the time of e-mail processing for the Sent Form
  11. {{{name}}} - Depending on whether it's used in Recipients or Attachments, it lists the appropriate Name of each Recipient / Attachment
  12. {{OnlineDocsPDFURL}} - URL link to a PDF version of the Sent Form
  13. {{PortalLoginUrl}} - https://admin.field2base.com/
  14. {{project.key}} - Folder Key that the Sent Form is associated with. (Project = Folder)
  15. {{project.name}} - Folder Name that the Sent Form is associated with. (Project = Folder)
  16. {{ReferenceNumber}} - Unique REF# used in the system for the Sent Form
  17. {{sender.email}} - Form sender's email address
  18. {{sender.key}} - Form sender's user key
  19. {{sender.realName}} - Form sender's first and last name
  20. {{sender.userName}} - Form sender's username
  21. {{SenderUsername}} - Form sender's username
  22. {{ServerTimestamp}} - Local time (ET) timestamp when the Sent Form was received on the server
  23. {{ServerTimestampUtc}} - Deprecated
  24. {{{Subject}}} - Subject (or friendly name) of the Sent Form - includes Form Name and Title.
  25. {{{SubjectLine}}} - The dispatch subject originally used in our system. There's already an existing 'subject' Keyword, but for DIM compatibility that actually takes the value of the dispatch friendly name, which is different from the subject for Sent Forms or RFIs. Most of the time, 'subject' should be preferred over 'subjectLine', and 'subjectLine' will likely be deprecated in the future
  26. {{TabletSerial}} - Activation ID of the device that sent the Form
  27. {{TimestampDisplay}} - local time timestamp formatted with the .Net "Full date/time pattern (short time)" when the Sent Form was received on the server
  28. {{VisibleRecipients}} - List of the Mandatory Recipients and the selected Optional Recipients for the Sent Form

User Templates

User E-Mail Templates are sent after various processes, updates, or edits involving a User have been completed. These e-mails are sent to the affected User or to the User that initiated the process, depending on the type of action taken.

Conditionals Based on User's SSO Setting

You have the ability to display certain portions of your email template based on whether the User is required to log in using SSS) by using If conditionals in the HTML for your email template.
  1. {{#if SSORequired}}
  2.    <strong>Log in with SSO</strong>
  3. {{else}}
  4.    <strong>Password: {{Password}}</strong>
  5. {{/if}}

How to Disable User E-Mails

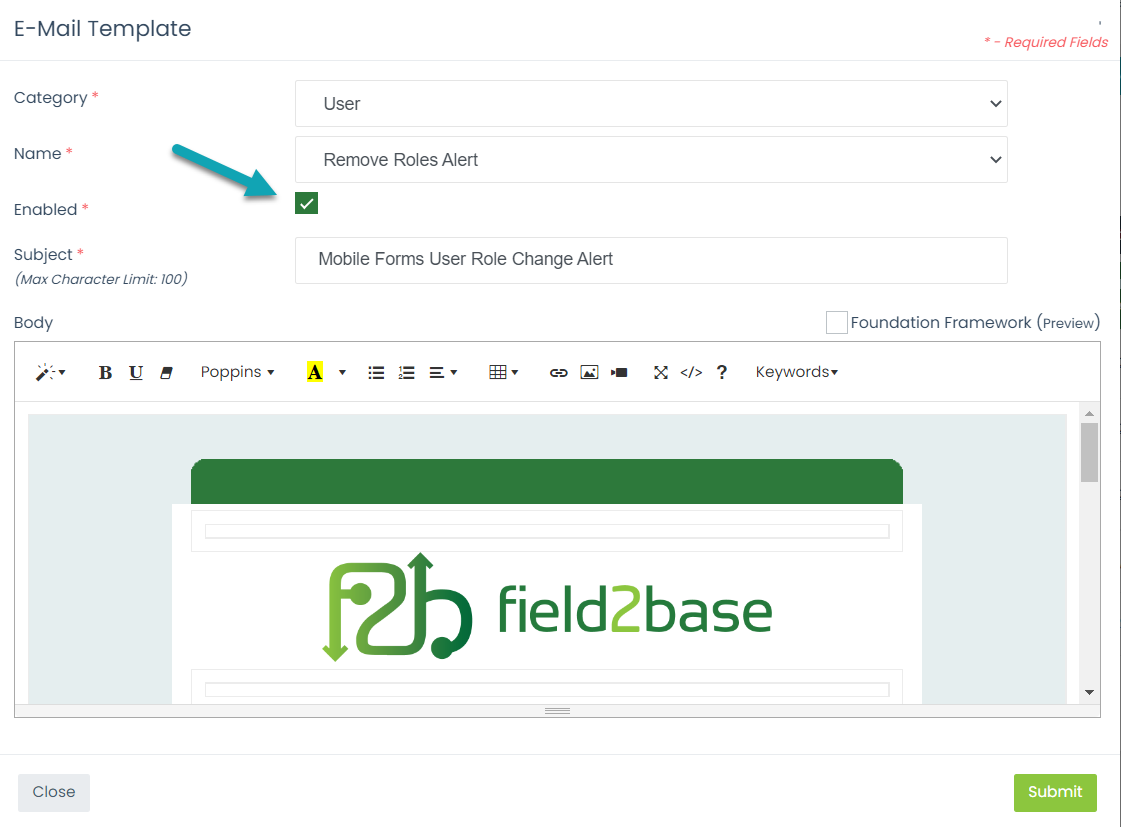

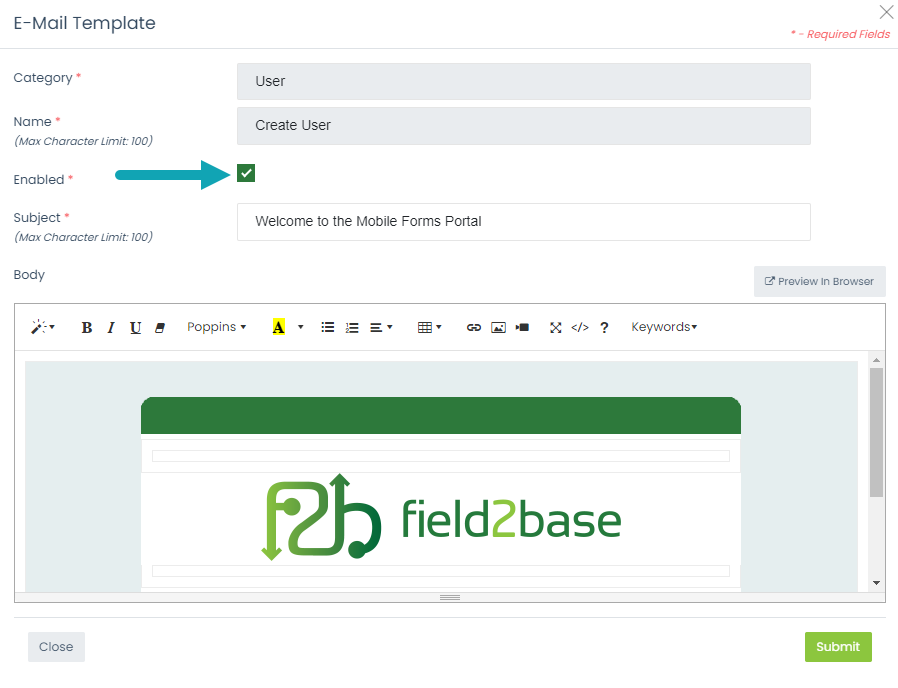

User e-mails can be disabled by unchecking the Enabled checkbox in the E-Mail Template window.

Types

  1. Activation of New Device Alert - Sent to the User associated with a device that has just been activated
  2. Added to New Company Alert - Sent to a User that has been to a new company
  3. Create User - Sent to a new User upon creation
  4. Edit User Alert - Sent to a User anytime their info has been updated or edited
  5. Edit User with No Role Alert - Sent to a User with no Roles (App only User) anytime their info has been updated or edited
  6. Forgot Your Password - Sent to a User after they request a password recovery
  7. Forgot Your Username - Sent to a User after they request a username recovery
  8. New User with No Role Alert - Sent when a new User with no Roles has been created in a company (sent to the User)
  9. Password Change Alert - Sent to a User when their Password has been changed
  10. Remove Roles Alert - Sent to a User when all of their Roles have been removed
  11. Role Change Alert - Sent to a User when a Role has been added or changed
  12. Updated to Multi-Company User Account Alert - Sent to a User when they have been registered with more than one company
  13. User PIN Reset - Sent to User when a PIN number has been reset for their account (optional company feature)
  14. User PIN Set - Sent to User when a PIN number has been set for their account (optional company feature)
  15. Username Change Alert  - Sent to a User when their Username has been changed

Available Keywords

  1. {{AssignedRoles}} - The Roles that have been assigned to the User receiving the email
  2. {{AssignedToUser}} - Assigned User for e-mail generated when Notification option is checked when creating Work Orders
  3. {{BaseWebUrl}} - https://admin.field2base.com/
  4. {{CompanyId}} - User's Company ID
  5. {{CompanyName}} - User's company name
  6. {{CustomerName}} - A concatenated string of the User's first and last name
  7. {{DateTime}} - Time when a bulk user update or bulk assign roles request is processed
  8. {{EmailAddress}} - User's Email Address
  9. {{{Errors}}} - List of errors that occurred when a bulk user update or bulk assign roles request is processed
  10. {{Issues}} - Identifies if there are issues with the bulk user update or bulk assign roles request is processed
  11. {{Password}} - User's password
  12. {{Platform}} - User's device platform
  13. {{PortalLoginUrl}} - https://admin.field2base.com/
  14. {{SuccessCount}} - The number of successful updates during a bulk import, assignment, or update process
  15. {{SSORequired}} - Returns true or false for whether the User is required to use SSO to log in
  16. {{UserName}} - User's Username
  17. {{UsersCount}} - Number of possible Users included when a bulk user update or bulk assign roles request is processed
  18. {{WorkOrderName}} - Name of the Work Order being assigned to a User


Work Order Templates

Work Order E-Mail Templates are used to notify a User when a Work Order is assigned or re-assigned to them and to provide a Shared Form link to a Recipient of a Shared Form Work Order. You can also create Custom Template. See the article on Dispatching Work Orders from the Portal for details.

Using Conditionals to List Multiple Work Orders

You have the ability to display a list of Work Order Names assigned or re-assigned to the same user by using If conditionals in the HTML for your email template.
  1. {{#if assignedWorkOrder}}
  2.    <ul>
  3.       {{#each assignedWorkOrder}}
  4.          <li style="margin-left: 25px;">{{WorkOrderName}}</li>
  5.       {{/each}}
  6.    </ul>
  7. {{/if}}

Types

  1. Shared Form Work Order to Recipient
  2. Work Order Assigned
  3. Work Order Re-Assigned
  4. Custom Template

Available Keywords

  1. {{BaseWebUrl}} - https://admin.field2base.com/
  2. {{CompanyName}} - Name of your company
  3. {{CompanyId}} - Your Company ID
  4. {{{form.name}}} - Name of the Sent Form triggering the email
  5. {{PortalHomeUrl}}
  6. {{PortalLoginUrl}} - https://admin.field2base.com/
  7. {{SharedFormWorkOrderURL}} - link to Shared Form Work Order.


Workflow Templates

Workflow E-Mail Templates are sent as part of Custom Workflows. Mobile Forms Administrators can create and edit Workflow E-Mail Templates but because these templates are used specifically in Custom Workflows, you will need to contact Field2Base Professional Services if you wish to add or change how a Workflow E-Mail Template is used in a Custom Workflow. Custom Workflows can only be created or edited by Field2Base.
If you wish to edit the final e-mail that is sent when a Form is approved from a Basic Workflow, please refer to the section above, "Editing Company-Wide Default E-Mail Templates".

Conditionals Based on Region Values

You have the ability to display certain portions of your email template based on whether a Form Region has a value by using If conditionals in the HTML for your email template.
  1. {{#if form.page1.Comments}}
  2.    <p>Comments: {Page1@Comments}</p>
  3. {{/if}}

Available Keywords

  1. {{AnonymousLink}} - URL link to a PDF version of the Sent Form
  2. {{BaseWebUrl}} - https://admin.field2base.com/
  3. {{company.name}} - Name of your company
  4. {{companyid}} - Your Company ID
  5. {{documentId}} - Unique REF# used in the system for the Sent Form
  6. {{{form.name}}} - Name of the Sent Form triggering the email
  7. {{formProcessTime}} - Timestamp of the current server local time at the time of e-mail processing for the Sent Form
  8. {{onlineDocsPDFURL}} - URL link to a PDF version of the Sent Form
  9. {{PortalLoginUrl}} - https://admin.field2base.com/
  10. {{project.key}} - Folder Key that the Sent Form is associated with. (Project = Folder)
  11. {{referenceNumber}} - Unique REF# used in the system for the Sent Form
  12. {{project.name}} - Folder Name that the Sent Form is associated with.  (Project = Folder)
  13. {{sender.key}} - Form sender's User Key
  14. {{sender.realName}} - Form sender's first and last name
  15. {{senderUsername}} - Form sender's username
  16. {{serverTimestamp}} - Local time (ET) timestamp when the Sent Form was received on the server
  17. {{serverTimestampUtc}} - Deprecated
  18. {{{Subject}}} - Subject (or friendly name) of the Sent Form (includes Form Name and Title)
  19. {{{subjectLine}}} - The dispatch subject originally used in our system. There's already an existing 'subject' Keyword, but for DIM compatibility that actually takes the value of the dispatch friendly name, which is different from the subject for Sent Forms or RFIs. Most of the time, 'subject' should be preferred over 'subjectLine', and 'subjectLine' will likely be deprecated in the future
  20. {{tabletSerial}} - Activation ID of the device that sent the Form
  21. {{timestampDisplay}} - Local time timestamp formatted with the .Net "Full date/time pattern (short time)" when the Sent Form was received on the server
  22. {{WorkflowDocumentURL}} - URL that links to the Form in Workflow
  23. {{WorkflowName}} - Name of the Workflow Definition applied to the Form

    • Popular Articles

    • Forms Designer Quick Start Guide

      Overview Field2Base Forms Designer is the proprietary software application that allows your existing paper forms to be quickly converted to a smart E-form available to your end users via our mobile and web-based Mobile Forms applications. This ...
    • Portal 11.28.2023 Release Notes

      Overview Our release notes offer brief descriptions of product enhancements and bug fixes. We include links to the current articles for any affected features. Those articles will be updated shortly after the Portal release to include new ...
    • Integration Service Configuration Guide

      How To Configure Integration Services To Allow Read/Write Access on a Network Path All of our Integration Products, including the DIM, DUU, and EDM have respective Windows Services responsible for communicating with our server. Occassionally, ...
    • Data Integration Module (DIM) Migration Guide

      Overview This article provides the information necessary to migrate the Field2Base Data Integration Module (DIM) over from one server to another. Please refer to the DIM Install Guide for the initial installation of the Field2Base DIM. Once that's ...
    • How to Check the Version of Integration Products Running on a Windows 10 Machine

      Right-click on the Start menu button. Click on Apps & Features. In the Apps & Features search bar type in the Integration Product you are looking for, eg. F2B Data Integration Module, F2B Data Upload, or F2B Enterprise Dispatch Module. Click to ...
