How to Use Pen Regions
Overview
A Pen Region can be used to capture data such as signatures or drawings. Pen Regions are available in two formats. The format is set in Forms Designer during the design process.
- Standard Format: The Pen Region will begin recording your ink strokes as soon as you start drawing inside the Region.
- Full Canvas Format: (Recommended for signatures) You will get a full screen pop-up canvas when you single tap the Region, giving you a much broader area to create ink strokes.
Pen Region Options
Opening Pen Region Options
Standard Format
1. Press and hold on the Pen Region.
Full Canvas Format
1. Single tap the Pen Region to open the canvas.
2. Press and hold on the canvas.

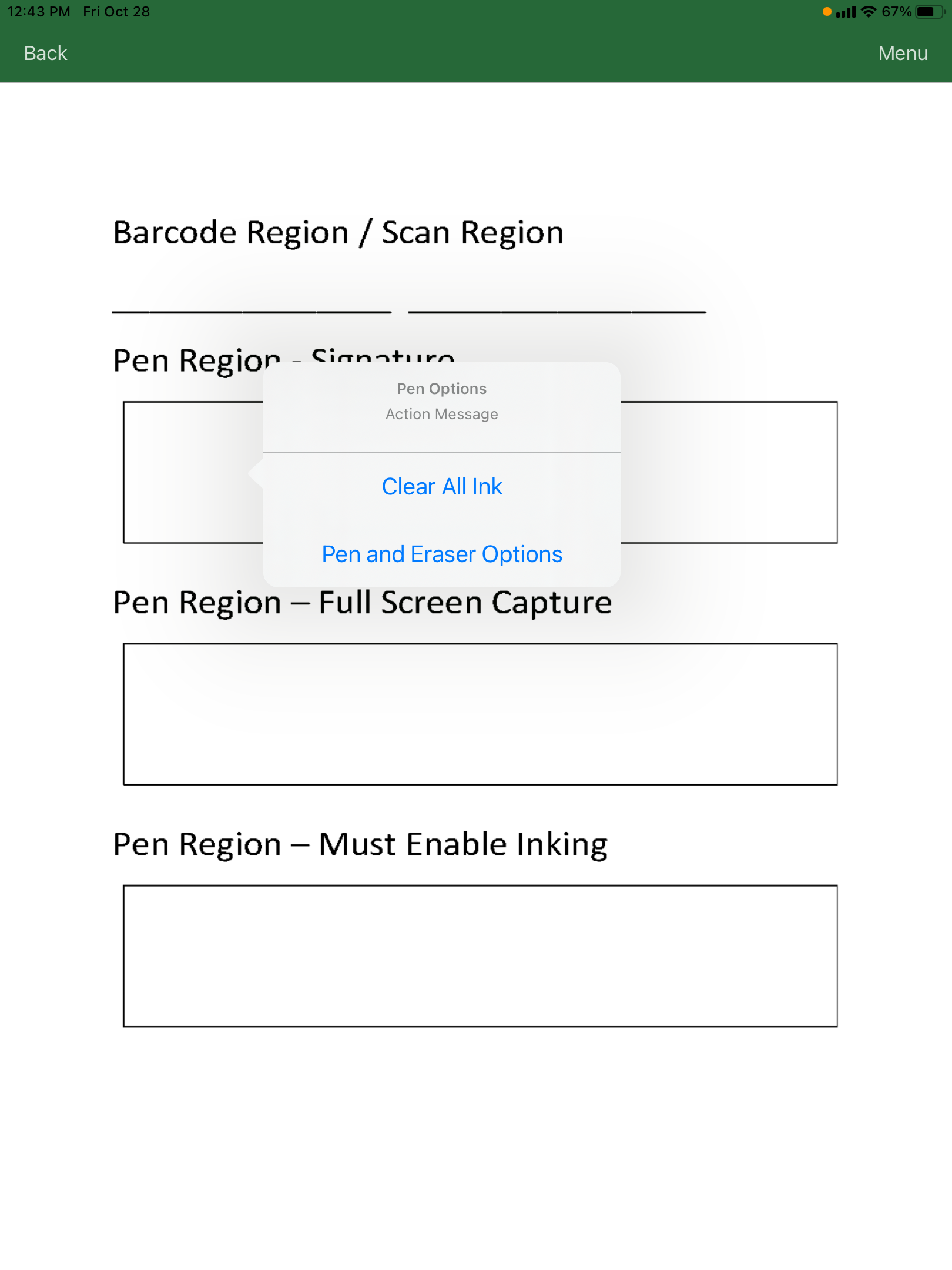

Clearing a Pen Region
1. Single tap Clear all Ink to clear the entire Region.

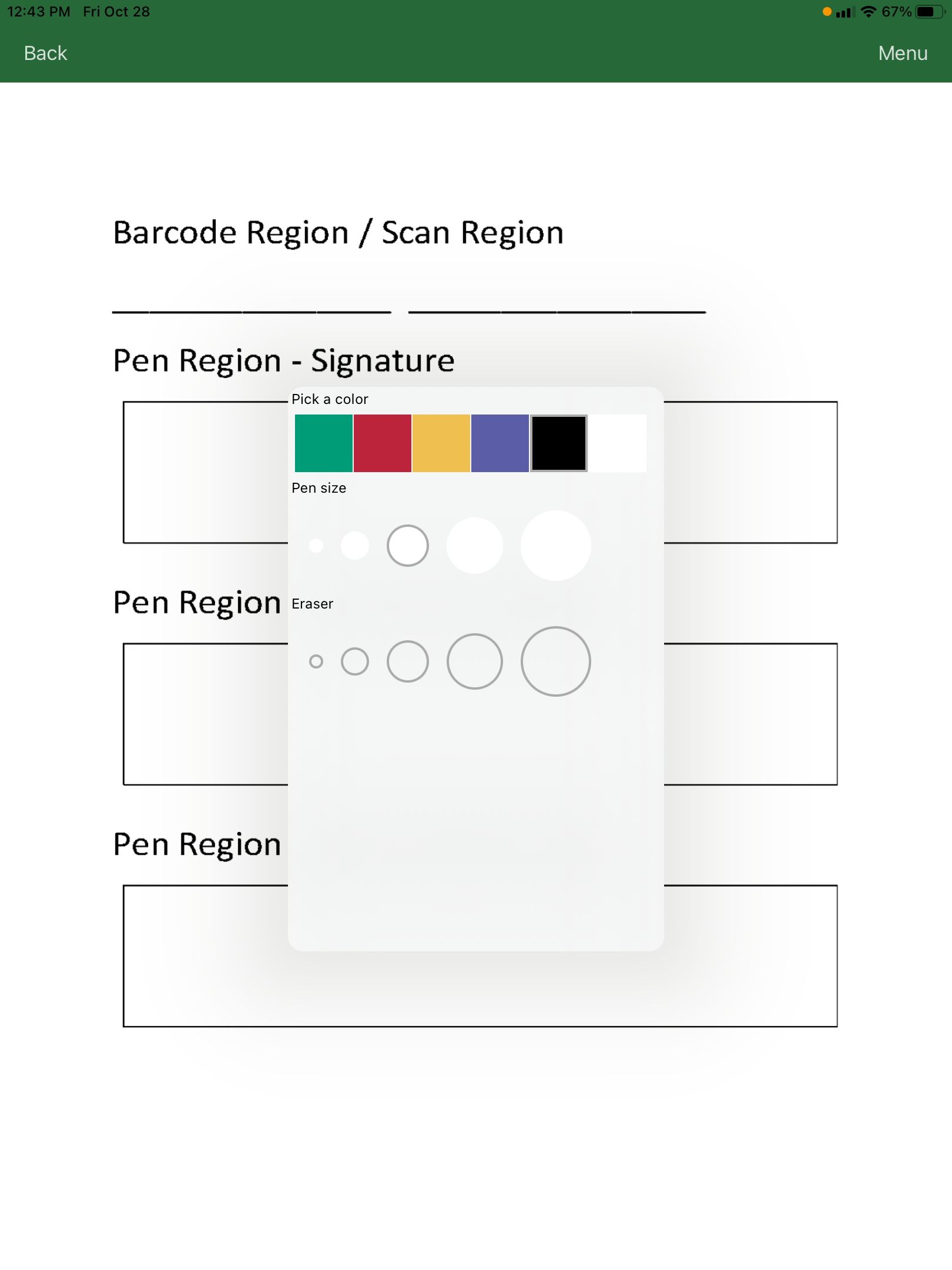

Pen and Eraser Options
1. Single tap Pen and Eraser Options to open the pen and eraser options.
2. Single tap on a color and pen size to change the appearance of your pen strokes.
3.Single tap on an eraser size to erase specific parts of your existing pen strokes.
